One (1) splice tray FB25-4000STP24 included. Additional splice trays and adapter panels sold separately.
This fiber patch panel is only compatible with our FB24 series of adapter panel inserts and either FB25-4000STP24 splice tray or FB25-3401STP36, which are sold separately. To find out more, give us a call or email us.
Description

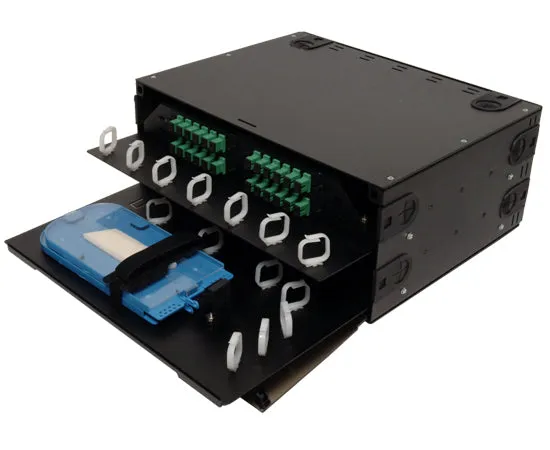

Fiber Patch Panel, Slide-Out Patch and Splice Combo, 4RU, Holds 4 Adapter Panels and Up To 4 Splice Trays, Black
This rack mount fiber patch panel is a 4 Rack Unit (4RU) combination 19" or 23" rack mounted termination and splice shelf. The fiber housing has a 4 position termination panel in an upper slide out shelf with a lower compartment with a 4 splice tray slide out shelf, which allows for a fully front access application. Blank panels are available to fill unused panel positions. The FB23-3925RPS4 is one of a family of units that support fiber termination in rack mount applications.
Cleaning your fiber connector end faces and components regularly is crucial for avoiding a total network failure. Ensure your optical fiber system is working properly and prevent major network issues with and
Note: One FB25-4000STP24 splice tray is included with this panel (Additional splice trays are sold separately).
Features
Features
- Can be ordered fully terminated with cabling or pigtails.
- Includes one splice tray FB25-4000STP24 with 24 single fusion splice capacity.
- Individual splice tray compartment for organization.
- Supplied with mounting hardware for 19" or 23" mounting.
Specifications
Specifications
Capacity
Total 4 Splice Trays (Sold Separately)
-(4) 24 Fiber Splice Trays ()
-(4) 36 Fiber Splice Trays ()
Total 4 Adapter panels (Sold Seperately)
Dimensions
Depth: 14"
Height: 7"
Width: 17"
Weight: 17 lbs
Physical Properties
Color: Black
Material: 0.060" Powder Coated Aluminum
Spec Sheet
